- Product Size
- Technical Specification

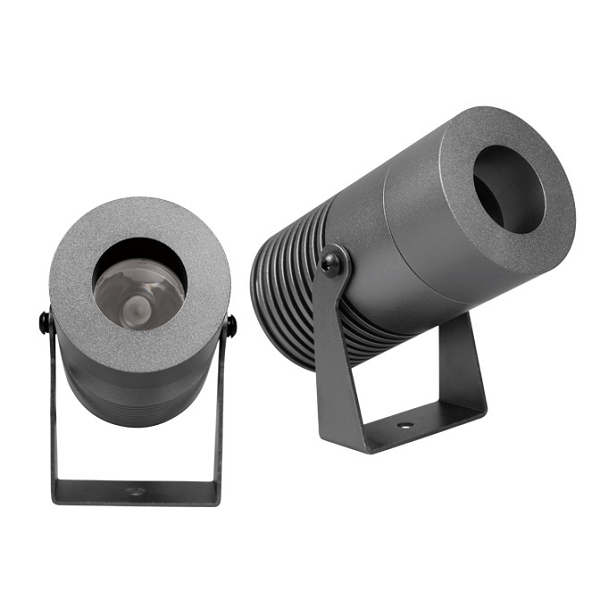

| (UL-P-1019) SP-P-1019 | ||
| 1 | LED Type and Quantity | 1*12W CREE XHP35 |
| 2 | LED quantity in series connection*in-parallel connection | 1*1 |
| 3 | LED BIN | VF=12V |
| 4 | CCT & CRI | 2700K3000K4000K6000K,R,G,B Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.5A |
| 7 | Current for each pc LED | 1A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | AC100~265V |
| 2 | System Power | 12W±10% |
| 3 | Control | ONOFF |
| 4 | Power Factor | ≧0.5 |
| 5 | Surge Protection | 1 kv: L-N/1 kv:LN-PE |
| Optical | ||
| 1 | System Lumen Package(typical) | 400 lm |
| 2 | System Efficacy(typical)lm/w | 33 LM/W |
| 3 | Beam Angle | 5° |
| Mechanical & packaging for front cover | ||
| 1 | Luminaire Size (L*W*H) | 61 x 115 (mm) Diameter x Height |
| 2 | Weight per piece | 0.58kgs |
| 3 | Packaging quantity | 24 |
| 4 | Packaging size | 52.5*27.5*23CM |
| 5 | Gross weight KG) | 15kg |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | Anodized Aluminium housing CNC machined |
| 2 | Material for Lens or Reflector | PMMA |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 1PC of outdoor cable, neoprene material, H05RN-F 3×1.0mm², length is 1 meter |
| 5 | Mounting Sleeve/ Spike/ Others | Screws/Spike/Round Base |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Surface installation |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK04 |
| 4 | Lum Classification | I |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Selling Point
1) Anodized Aluminum 6063, CNC machined.
2) High quality CREE XHP35 .
3) Nice quality driver inside.
4) Good quality control.
5) 3 years warranty.
6) 8-10 years professional sales and technicians to serve you.
- Light Distribution Curve
- Illuminance Distance Curve
