- Product Size
- Technical Specification

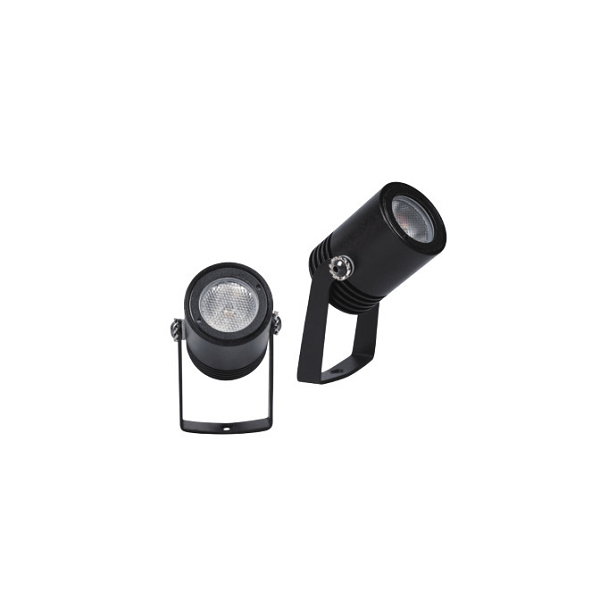

| (UL-P-1004) SP-P-1004 | ||
| 1 | LED Type and Quantity | 1*3W CREE XPE |
| 2 | LED quantity in series connection*in-parallel connection | 1*1 |
| 3 | LED BIN | VF=(2.8~3.1)V |
| 4 | CCT & CRI | 2700K3000K4000K6000K,R,G,B Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.125A |
| 7 | Current for each pc LED | 0.7A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | DC12V/DC24V |
| 2 | System Power | 3W±10% |
| 3 | Control | ONOFF PWM |
| Optical | ||
| 1 | System Lumen Package(typical) | 90 lm |
| 2 | System Efficacy(typical)lm/w | 30 LM/W |
| 3 | Beam Angle | 15° 25° 38° 45° 60° |
| Mechanical & packaging for front cover | ||
| 1 | Luminaire Size (L*W*H) | 28×39 (mm) Diameter x Height |
| 2 | Weight per piece | 0.1kgs |
| 3 | Packaging quantity | 60 |
| 4 | Packaging size | 32*31*24.5CM |
| 5 | Gross weight KG) | 6.5kg |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | Passivated (Strong Anodized) Aluminium housing CNC machined |
| 2 | Material for Lens or Reflector | PMMA |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 1PC of outdoor cable, neoprene material, H05RN-F 2×1.0mm², length is 1 meter |
| 5 | Mounting Sleeve/ Spike/ Others | Screws/Spike/Round Base |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Surface installation |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK04 |
| 4 | Lum Classification | I |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Selling Point
1) Passivated (Strong Anodized) Aluminum 6063, CNC machined.
2) High quality CREE XPE LED chip.
3) Nice quality driver inside.
4) 3 years warranty.
5) 8-10 years professional sales and technicians to serve you.
- Light Distribution Curve
- Illuminance Distance Curve
