- Product Size
- Technical Specification

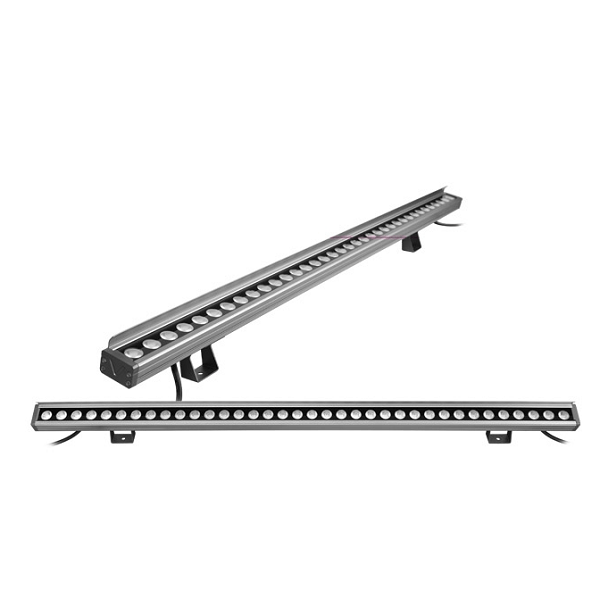

| LWW-P-3601-4800-B | ||
| 1 | LED Type and Quantity | 36*1.3W Osram 3030 |
| 2 | LED quantity in series connection*in-parallel connection | 3*12 |
| 3 | LED BIN | VF=(6.0~6.2)V |
| 4 | CCT & CRI | 2700K/3000K/4000K/6000K Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 2A |
| 7 | Current for each pc LED | 0.2A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | DC24V |
| 2 | System Power | 48W±10% |
| 3 | Control/Dimming | ONOFF PWM |
| Optical | ||
| 1 | System Lumen Package(typical) | 3200 lm |
| 2 | System Efficacy(typical)lm/w | 70 LM/W |
| 3 | Beam Angle | 12/24/30/40/60/10*30/15*40° |
| Mechanical & packaging for front cover | ||
| 1 | Luminaire Size (L*W*H) | 1000*45*44 (mm) L x W x H |
| 2 | Weight per piece | 1.7 kgs |
| 3 | Packaging quantity | 9 |
| 4 | Packaging size | 108*30*25cm |
| 5 | Gross weight KG) | 16KG |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | Passivated (Anodizing) Aluminum, Dark grey |
| 2 | Material for Lens or Reflector | PMMA |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 2pcs of rubber cable of neoprene material, with waterproof connector at both end, 2x 1.5mm² |
| 5 | Mounting Sleeve/ Spike/ Others | Bracket |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Surface installation |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP65 |
| 3 | IK | IK07 |
| 4 | Lum Classification | III |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Light Distribution Curve
4.Illuminance Distance Curve
