Features

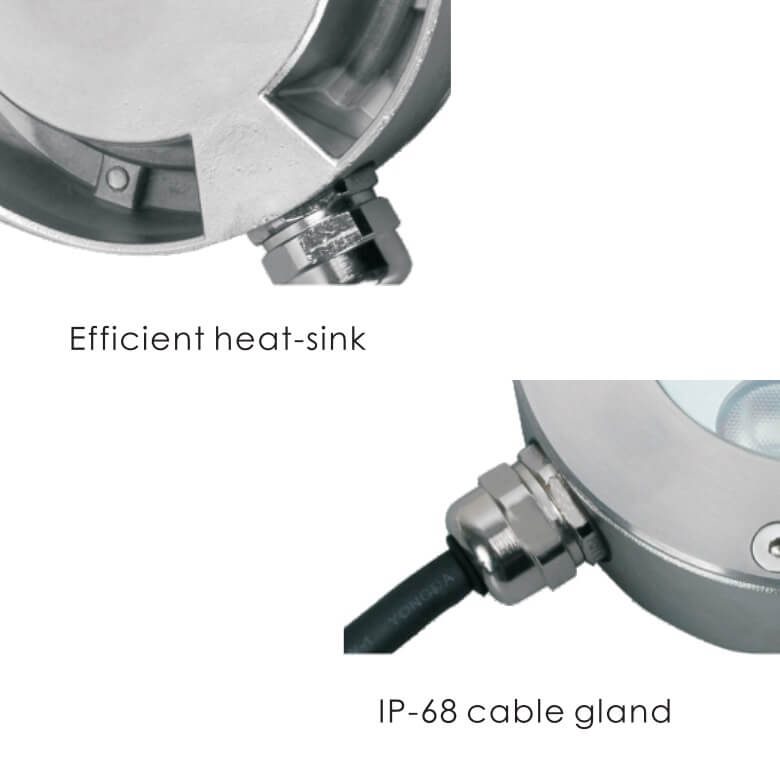

Housing
Molding shaped sus 316L stainless steel housing
Front Cover
SUS 316L stainless steel
Gasket
EPDM gasket
Glass
Step Tempered glass. T=8mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-11 copper with nickel-coated
Product Size
Mounting Type
Surface mounted
IP Ratings
IP68, less than 1 meter depth.
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| SKU |
|---|

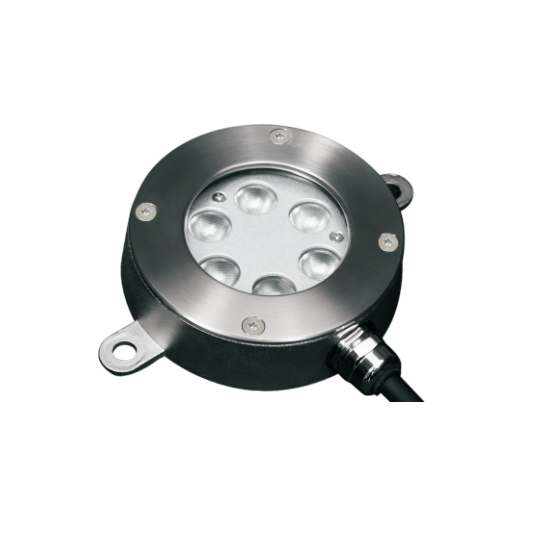

| WT-G-B4B0616 |
| WT-G-B4B0618 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V | 13 | LED 6 x 2W | 520lm | 25° | 3000K | Ra80 | ON/OFF, DALI, 1-10V | 08 |
| DC24V | 16.8 | LED 6 x 2W | 428lm | 25° | RGB | – | DMX | 08 |
Light Distribution
