Features
Housing
Aluminum anodized finshing & powder painting
Glass
Tempered glass. T=4mm
Lens
Optical lens, efficiency ≥85%
Cable gland
Copper and nickel coated
Gasket
Molding shaped silicone double seal

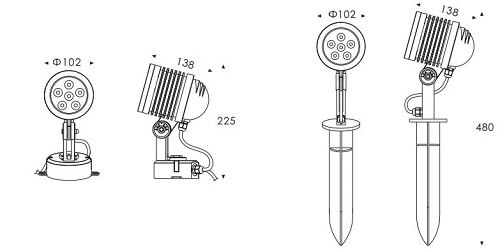

Product Size
Mounting Type
Surface mounting
IP Ratings
IP65
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics

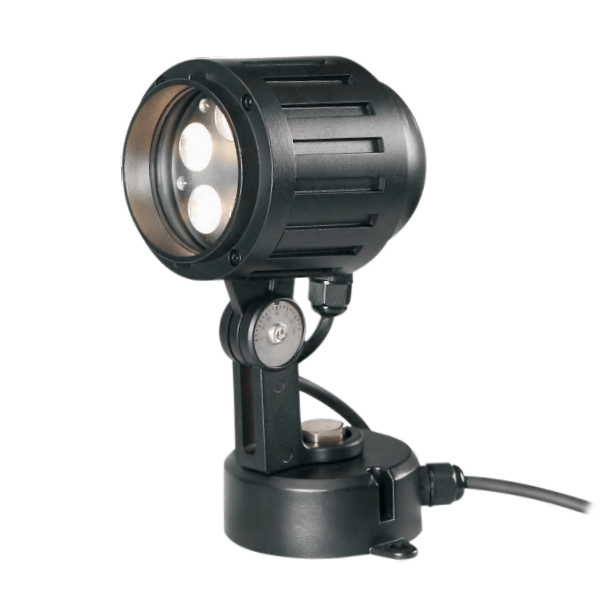

| Product Model |
|---|
| SP-G-B3BQN0557 |
| SP-G-B3BQN0518 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V/ AC220V | 12.5 | LED 5 x 2W | 750lm | 30° | 3000K | Ra80 | ON/OFF, DALI, 1-10V | 05 |
| DC24V | 17.5 | LED 5 x 3W | 360lm | 30° | RGB | – | DMX | 05 |

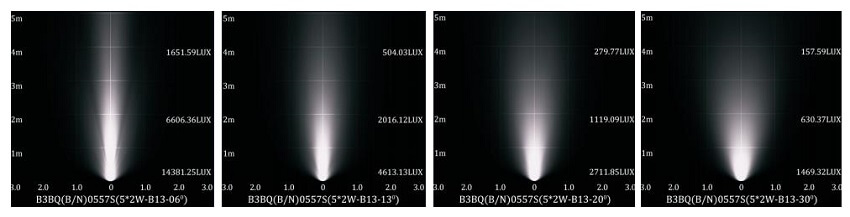

Light Distribution
