Features
Housing
Aluminum anodized finshing & powder painting
Glass
Tempered glass. T=3mm
Lens
Optical lens, efficiency ≥85%
Cable gland
Copper and nickel coated
Gasket
Tooling shaped seal

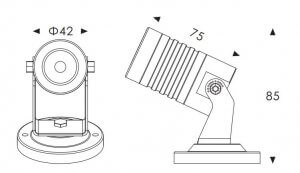

Product Size
Mounting Type
Surface mounting
IP Ratings
IP65
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| Product Model |
|---|
| SP-G-B3AM0157 |
| SP-G-B3AM0106 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V/ AC220V | 2.5 | LED 1 x 2W | 150lm | 30° | 3000K | Ra80 | ON/OFF, DALI, 1-10V | 02 |
| DC24V | 3.5 | LED 1 x 3W | 50lm | 30° | RGB | – | DMX | 02 |
Light Distribution
