Features
Housing
Molding shaped sus 316L stainless steel housing
Front Cover
SUS 316L stainless steel
Gasket
EPDM gasket
Glass
Step Tempered glass. T=9mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-11 copper with nickel-coated

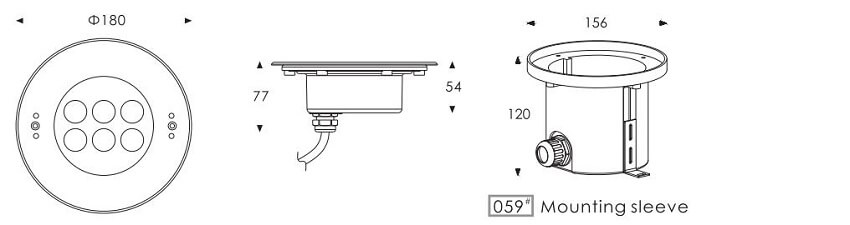

Product Size
Mounting Type
Reccessed mounted
IP Ratings
IP68, less than 1 meter depth.
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
Product Model |
WT-G-B4YB0657 |
WT-G-B4YB0618 |
WT-G-C4YB0657 |
Voltage |
Power |
Source |
Lumens |
Optics |
CCT |
CRI |
Control |
IK Rate |
DC24V |
16.8 |
LED 6 x 2W |
1200lm |
30° |
6000K |
Ra80 |
ON/OFF, DALI, 1-10V |
08 |
DC24V |
24 |
LED 6 x 2W |
420lm |
25° |
RGB |
– |
DMX |
08 |
DC24V |
16.8 |
LED 6 x 2W |
790lm |
(45/35)° |
6000K |
– |
ON/OFF, DALI, 1-10V |
08 |

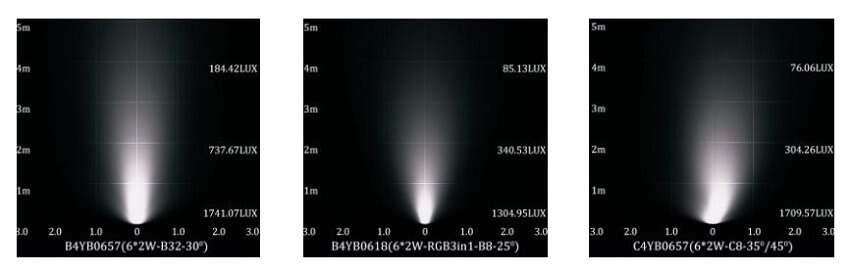

Light Distribution
