Features
Housing
Molding shaped sus 316L stainless steel housing
Glass
Step Tempered glass. T=10mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-11 copper with nickel-coated
Gasket
G 11/2″ taper

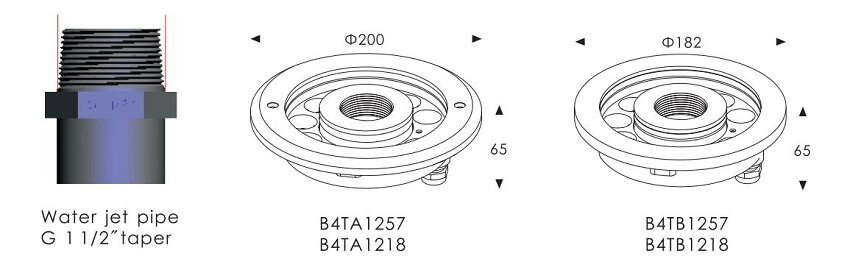

Product Size
Mounting Type
Fixed on water jet pipe
IP Ratings
IP68, less than 1 meter depth.
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| SKU |
|---|
| WT-G-B4TA1257-1 |
| WT-G-B4TA1257-2 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V | 28.8 | LED 12 x 2W | 500lm | 25° | 3000K | Ra80 | ON/OFF, DALI, 1-10V | 09 |
| DC24V | 33.6 | LED 12 x 3W | 400lm | 25° | RGB | – | DMX | 09 |

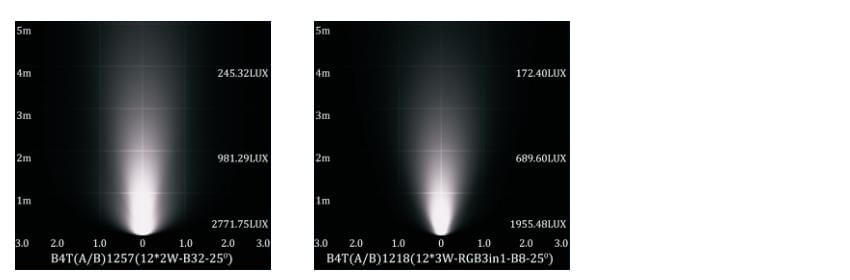

Light Distribution
