Features
Housing
12# Die-casting grey powder coated aluminum.T=60-80µm. Adhesion of ISO class 1/ASTM class 4B
Front Cover
SUS 316L stainless steel
Gasket
Molding shaped silicone seal
Glass
Step tempered clear glass. T=5mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-67 PG-9 copper with nickel-coated

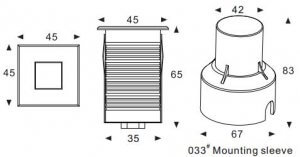

Product Size
Mounting sleeve
PVC Material
Mounting Type
Underground buried mounting
IP Ratings
IP67
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| Product Model |
|---|
| UL-G-D2YCR0134 |
| UL-G-D2YCS0134 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V | 0.8 | LED 1 x 0.5W | 11lm | 100° | 3000K | – | ON/OFF, DALI, 1-10V | 06 |
| DC24V | 0.8 | LED 1 x 0.5W | 11lm | 100° | 3000K | – | ON/OFF, DALI, 1-10V | 06 |

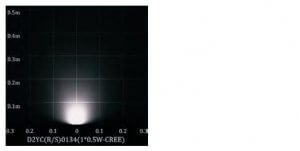

Light Distribution
