- Product Size
- Technical Specification

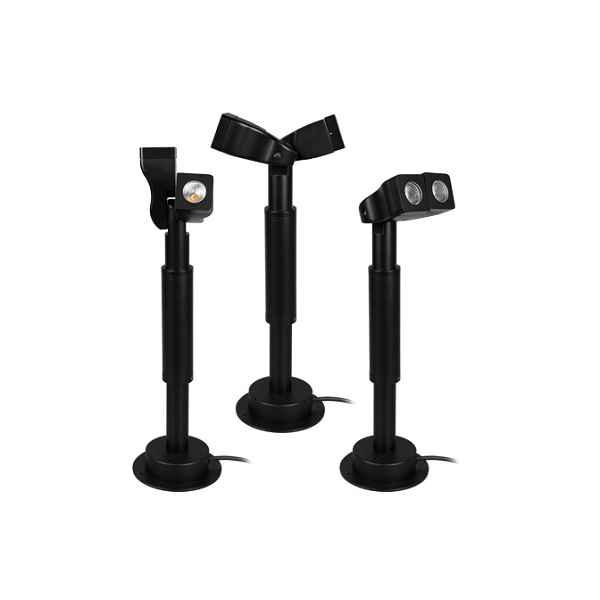

| (UL-P-1018 Garden Spot Light) SP-P-1018 Garden Spot Light | ||
| 1 | LED Type and Quantity | 2*7.5W CREE CXA1304 COB |
| 2 | LED quantity in series connection*in-parallel connection | 1*2 |
| 3 | LED BIN | VF=9V |
| 4 | CCT & CRI | 2700K3000K4000K6000K,R,G,B Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.625A(DC24V) |
| 7 | Current for each pc LED | 0.7*2A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | DC12/24V |
| 2 | System Power | 15W±10% |
| 3 | Control | ONOFF PWM |
| Optical | ||
| 1 | System Lumen Package(typical) | 750~800 lm |
| 2 | System Efficacy(typical)lm/w | 50 LM/W |
| 3 | Beam Angle | 15°, 25° |
| Mechanical & packaging for front cover | ||
| 1 | Luminaire Size (L*W*H) | 140 x 385 to 500 (mm) adjustable Diameter x Height |
| 2 | Weight per piece | 1.35kgs |
| 3 | Packaging quantity | 2 |
| 4 | Packaging size | 40*32.5*17CM |
| 5 | Gross weight KG) | 4.5kg |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | Anodized Aluminium housing CNC machined |
| 2 | Material for Lens or Reflector | PMMA |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 1PC of outdoor cable, neoprene material, H05RN-F 2×1.0mm², length is 1 meter |
| 5 | Mounting Sleeve/ Spike/ Others | With Aluminium spike,with Aluminium round base and the adjustable pole |
| 6 | Glass | Tempered glass, thickness is 3mm |
| 7 | Loading Capacity | 220kgs |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Surface installation |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK04 |
| 4 | Lum Classification | III |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Light Output
- Selling Point
1) Double Head Lamp
2) Anodized Aluminum 6063, CNC machined.
3) High quality CREE LED chip.
4) Nice quality driver inside.
5) Good quality control.
6) 3 years warranty.
7) 8-10 years professional sales and technicians to serve you.
