- Product Size
- Technical Specification

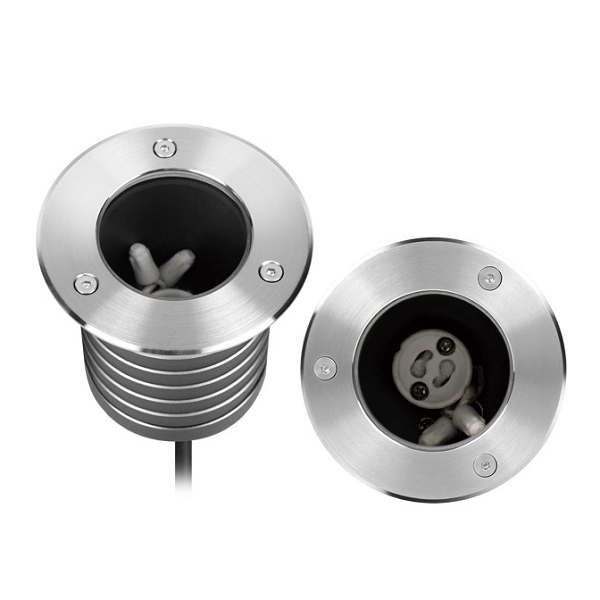

| UL-P-GU10-LC-1 | ||
| Electricalelectronic | ||
| 1 | Rated Input Voltage | AC100~245V |
| Mechanical & packaging | ||
| 1 | Luminaire Size (L*W*H) | Ø88x 85 (mm) Diameter x length
The height for mounting sleeve is 116mm |
| 2 | Weight per piece | 0.56 kgs |
| 3 | Packaging quantity | 20 |
| 4 | Packaging size | 50*40*15.5cm |
| 5 | Gross weight KG) | 12.2KG |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | SS316 trim, Aluminium housing CNC machined, dark grey color |
| 2 | Material for Lens or Reflector | PMMA |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 1PC rubber cable, neoprene material, 1M H05RN-F 2×1.0mm2 |
| 5 | Mounting Sleeve/ Spike/ Others | Plastic Mounting Sleeve |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Recessed installation |
| 2 | cut-out size for on ground | Φ 76mm |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK07 |
| 4 | Lum Classification | III |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Technical Specification
1) Marine Grade stainless steel SS316 trim.
2) Solid passivated aluminum 6063 housing, nice and elegant, not easy to paint-off.
3) Outdoor cable, rubber cable, neoprene material, H05RN-F 3×1.02.
4) IP Grade: Structure waterproof IP67.
5) CNC machined, can be DIY according to your request.
6) Warranty: 3 years
