- Product Size
- Technical Specification

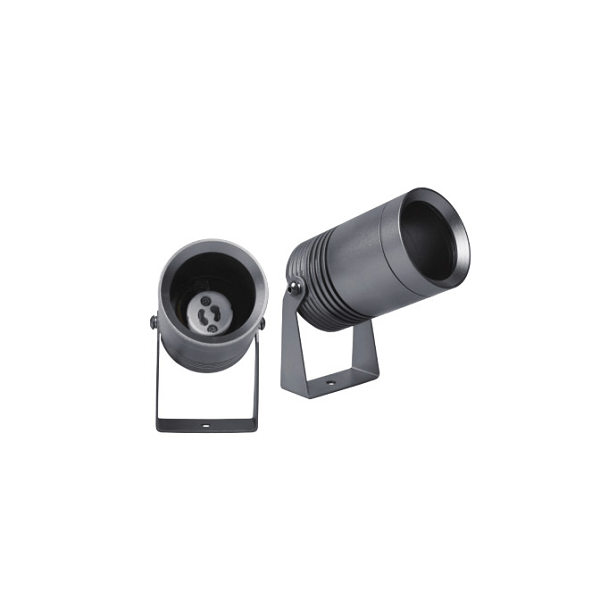

| (UL-P-1012-GU10-54) SP-P-1012-GU10-54 | ||
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | AC100~265V |
| 2 | Control | ONOFF |
| Mechanical & packaging for front cover | ||
| 1 | Luminaire Size (L*W*H) | 61 x 95 (mm) Diameter x Height |
| 2 | Weight per piece | 0.53kgs |
| 3 | Packaging quantity | 18 |
| 4 | Packaging size | 36.5*28*26CM |
| 5 | Gross weight KG) | 10.5kg |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | Aluminium housing CNC machined,dark grey color |
| 2 | The height of GU10 Bulb | 54mm(including pins) |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 1PC of outdoor cable, neoprene material, H05RN-F 3×1.0mm², length is 1 meter |
| 5 | Mounting Sleeve/ Spike/ Others | Screws/Spike/Round Base |
| 6 | Glass | Tempered glass, thickness is 3mm |
| 7 | Loading Capacity | 220kgs |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Surface installation |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK04 |
| 4 | Lum Classification | I |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Selling Point
1) Passivated( strongly anodized) Aluminum 6063, CNC machined.
2) DIY, you can put GU10 bulb yourself. The limit of GU10 is 54mm(the height includes the pins)
3) 3 years warranty.
4) 8-10 years professional sales and technicians to serve you.
