- Product Size:
2.Electronic Property:
| Item No. | (UL-P-1014-0100-A-E-1)
WL-P-1014-0100-A-E-1 |
| Light Source | 1W CREE XPE LED chip, can do 2W |
| Input Voltage | 12VDC to 24VDC |
| Color temperature | Cool white 6000K,Warm white 3000K |
| Beam angle | 120° |
| Lumens | 40lm to 45lm |
- Specifications

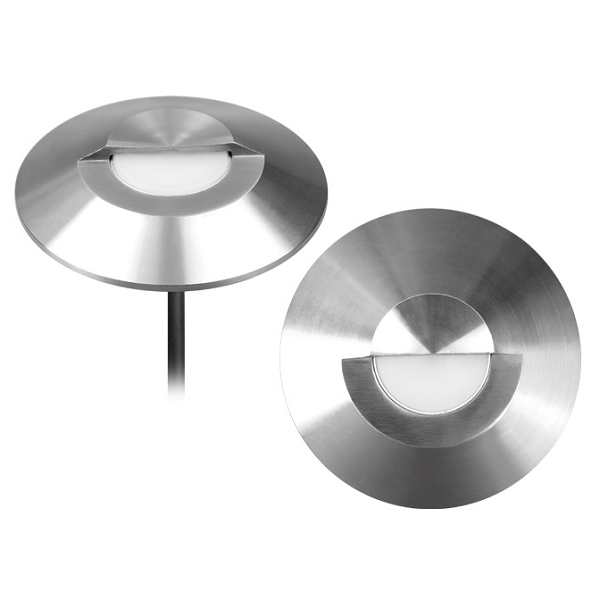

1) Mini Underground Light, also can be used as wall light.
2) Housing: Passivated 6063 aluminum.
3) Front cover: Stainless steel 316L
4) Load capacity: Nylon, 320kgs
5) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.5mm2 L=1m
6) Cable gland: PG5 cooper with nickel coated
7) Driver: Constant current output
8) Operating temperature: -20 to 60 ℃
9) IP Rating: IP67
10) Warranty: 3 years
- Lighting Distribution Curve:
- Illuminance Distance Curve:
