- Product Size:
- Electric Property:
| Item No. | UL-P-6001 |
| Light Source | 6W, 6x1W CREE XPE LED chip |
| Input Voltage | 24VDC |
| Color temperature | Warm White 3000K, Cool White 6000K |
| Beam angle | 20° 40° 60° |
| Luminous Flux(lm) | 480lm to 540lm |
| CRI | >80 |
- Specifications

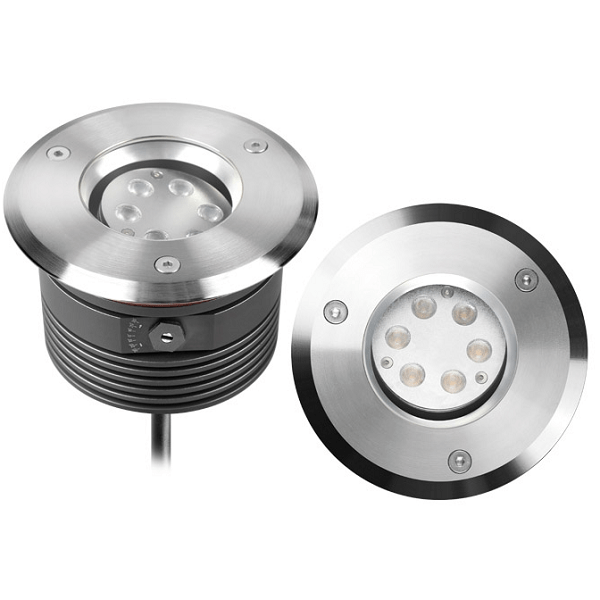

1) Underground Light, also call inground light, garden light
2) Housing: Passivated 6063 aluminum
3) Front cover: Stainless steel 316L
4) Glass: Step type, tempered glass, T=8mm
5) Load capacity: 2000kgs truck
6) Power cable: Rubber cable of neoprene material, H05RN-F 0.75mm2 L=1.5m
7) Cable gland: PG7 IP67 cooper with nickel coated
8) Gasket: O-ring PMQ silicon seal
9) Driver: Constant current output
10) Operating temperature: -20 to 60 ℃
11) Mounting sleeve: Passivated 6063 aluminum
12) IP Rating: IP67
13) Warranty: 3 years
- IES File:
- Illuminance-distance Curve:
