- Product Size:
- Electric Property:
| Item No. | UL-P-1013 |
| Light Source | 9W, 1x9W CREE MHB-A LED |
| Input Voltage | 24VDC or 220VAC |
| Color temperature | Warm White 3000K, Cool White 6000K |
| Beam angle | 45° & 45° Asymmetric |
| Lumens | 550lm to 600lm |
| CRI | >80 |
- Specifications

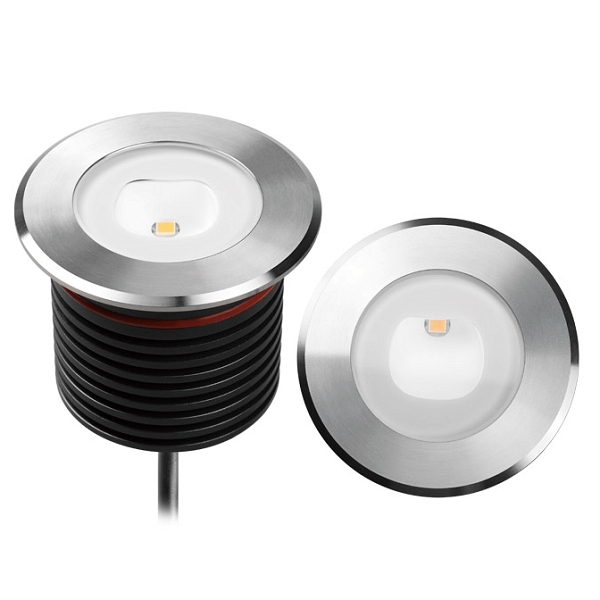

1) Underground Light, also call inground light, garden light
2) Housing: Passivated 6063 aluminum
3) Front cover: Stainless steel 316L
4) Glass: Step type, tempered glass, T=5mm
5) Load capacity: 1000kgs truck
6) Power cable: Rubber cable of neoprene material, H05RN-F 0.75mm2 L=1.5m
7) Cable gland: PG7 cooper with nickel coated
8) Gasket: O-ring PMQ silicon seal
9) Driver: Constant current output
10) Operating temperature: -20 to 60 ℃
11) Mounting sleeve: Passivated 6063 aluminum
12) IP Rating: IP67
13) Warranty: 3 years
- Lighting Distribution Curve:
- Illuminance Distance Curve:
