- Product Size:
2.Electric Property:
| Item No. | UL-P-3002 RGB |
| Light Source | 9W, 3pcs of 3 in 1 RGB LED chip |
| Input Voltage | 12VDC |
| RGB | Suit for DMX512 |
| Beam angle | 25° 45° |
| Lumens | 310m(All LEDs on) |
- Specifications

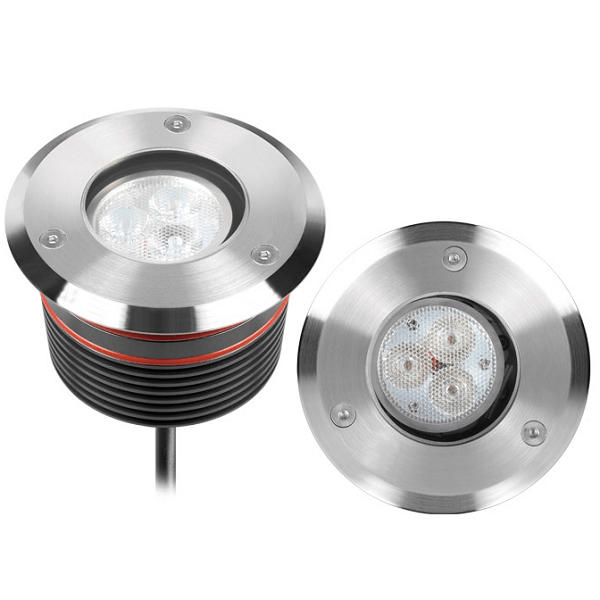

1) Underground Light, also call inground light, garden light
2) Housing: Passivated 6063 aluminum
3) Front cover: Stainless steel 316L
4) Glass: Step type, tempered glass, T=8mm
5) Load capacity: 2000kgs
6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=1.5m
7) Cable gland: PG9 IP67
8) Gasket: O-ring PMQ silicon seal
9) Driver: Constant current output
10) Operating temperature: -20 to 60 ℃
11) Mounting sleeve: Passivated 6063 aluminum
12) IP Rating: IP67
13) Warranty: 3 years
- Lighting Distribution Curve:
- Illuminance Distance Curve:
- Lighting Output:
