Features
Housing
12# Die-casting grey powder coated aluminum.T=60-80µm. Adhesion of ISO class 1/ASTM class 4B
Front Cover
SUS 316L stainless steel
Gasket
Molding shaped silicone seal
Glass
Step tempered clear glass. T=8mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-9 copper with nickel-coated
Product Size
Mounting sleeve
PVC Material
Mounting Type
Underground buried mounting
IP Ratings
IP67
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| Product Model |
|---|

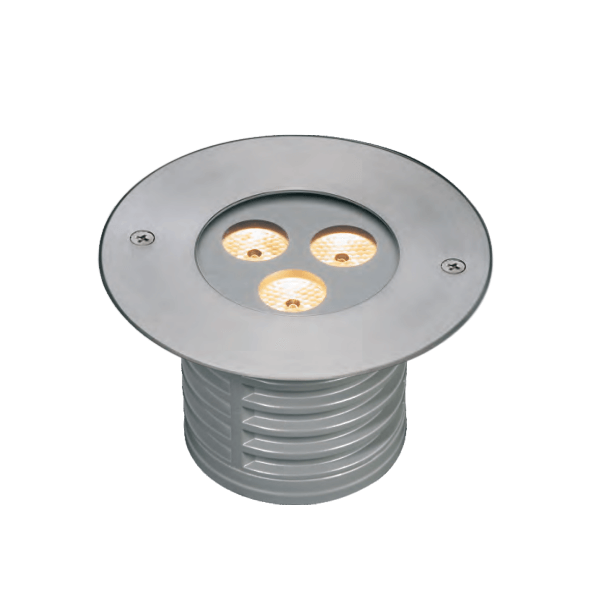

| UL-G-B2CDR0357 |
| UL-G-A2CDR0318 |
| UL-G-C2CDR0357 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V | 5.6 | LED 3 x 2W | 376lm | 20° | 3000K | Ra80 | ON/OFF, DALI, 1-10V | 09 |
| DC24V | 7.7 | LED 3 x 2W | 157lm | 20° | RGB | – | DMX | 09 |
| DC24V | 5.6 | LED 3 x 2W | 287lm | (45/35)° | 3000K | Ra80 | ON/OFF, DALI, 1-10V | 09 |

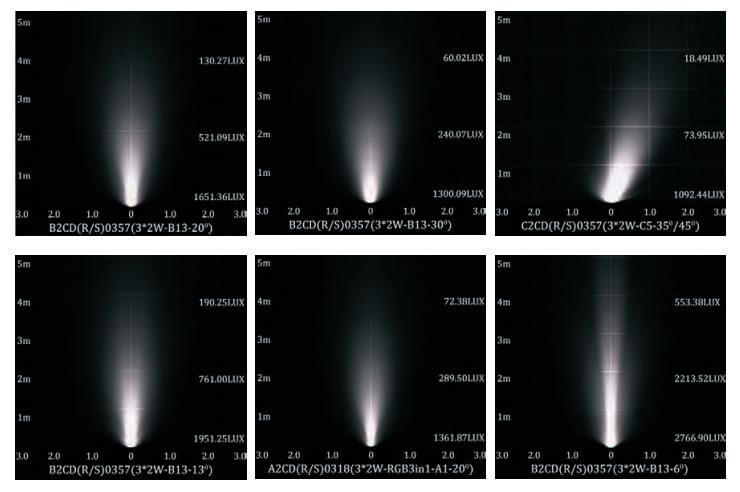

Light Distribution
