Home Outdoor Lighting Uplight 3W mini 360 degree light output stainless steel 316 Inground Light

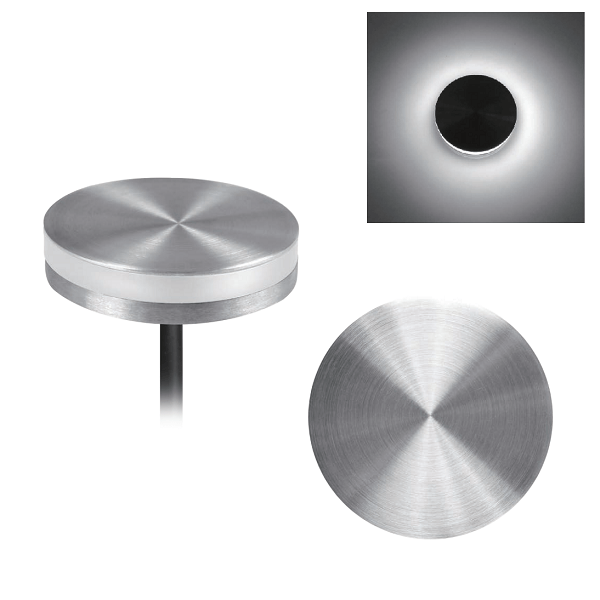

3W mini 360 degree light output stainless steel 316 Inground Light

Item No.: UL-P-1021-0300-A-A
Payment: T/T, WESTERN UNION, PAYPAL
Product Origin: China
CCT: 2700K3000K4000K6000K,R,G,B
Shipping Port: Guangzhou
Lead Time: 7-15 days

SKU: UL-P-1021-0300-A-A Category:
  1. Product Size

  1. Technical Specification
UL-P-1021-0300-A-A
1 LED Type and Quantity 4*0.75W Osram 3030
2 LED quantity in series connection*in-parallel connection 2*2
3 LED BIN VF=(6.0~6.2)V
4 CCT & CRI 2700K3000K4000K6000K,R,G,B Ra≥80
5 SDCM < 6 steps
6 Current for all LED 0.125A(DC24V)
7 Current for each pc LED 0.12A
Electricalelectronic
1 Rated Input Voltage & Frequency DC24V
2 System Power 3W±10%
3 Control/Dimming ONOFF PWM
Optical
1 System Lumen Package(typical) 25 lm
2 System Efficacy(typical)lm/w 8 LM/W
3 Beam Angle 360*90°
Mechanical & packaging for front cover
1 Luminaire Size (L*W*H) 65×13.5 (mm) Diameter x Height
2 Weight per piece 0.1kgs
3 Packaging quantity 120
4 Packaging size 37.5*37.5*12.5CM
5 Gross weight KG) 12kg for NW, 12.5kg for GW
Material & Finishing
1 Luminaire Body material & color SS316 trim, Aluminium housing CNC machined
2 Material for Lens or Reflector PMMA
3 in conformity with Rohs or not? Yes
4 External cable size and length 1PC PVC cable,  2×0.35mm2, length is 0.3 meters
5 Mounting Sleeve/ Spike/ Others Screws
Mounting
1 Surface/Recessed/Suspended/… Surface installation
Classification
1 Approbation CE
2 IP IP67
3 IK IK10
4 Lum Classification III
5 Working temp   -25℃~50℃
6 Life time in hours 50000h
7 Warranty years 3

3. Light Distribution Curve

  1. Illuminance Distance Curve

  1. Installation Instruction

6.Selling Point:

1.Nice Light Output, 360olight output

2.Easy to install, very thin, use screw to install it.

3.Marine grade stainless steel 316 cover & solid anodizing housing for anticorrossion, can be used near to sea.

4.Good quality, 3 years warranty
