- Product Size:
- Electric Property:
| Item No. | UL-P-1009 RGB/Single color |
| Light Source | 3W, 1x3W CREE XPE LED chip |
| Input Voltage | 12VDC to 24VDC |
| Suit for | DMX512 |
| Luminous Fux(lm) | 95lm (All LEDs on) |
| Beam angle | 30° |
- Specifications

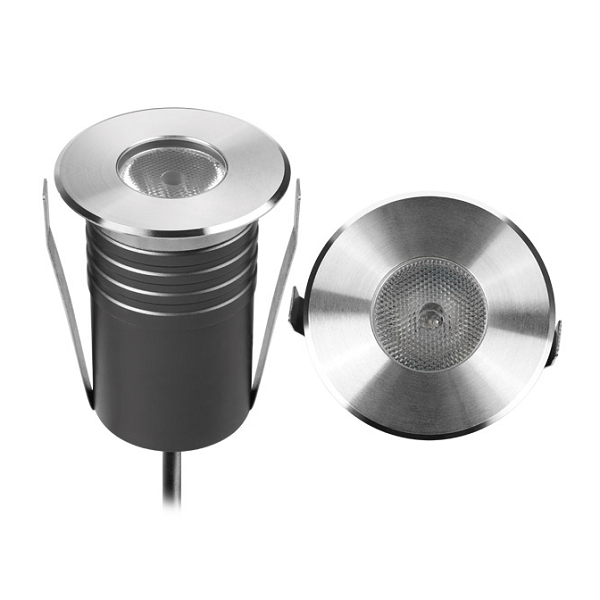

1) Underground Light, also can be used as wall light, down light
2) Housing: Passivated 6063 aluminum
3) Front cover: Stainless steel 316L
4) Glass: Step type, tempered glass, T=6mm
5) Load capacity: 610kgs
6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=1.5m
7) Cable gland: PG7 cooper with nickel coated
8) Gasket: O-ring PMQ silicon seal
9) Driver: Constant current output
10) Operating temperature: -20 to 60 ℃
11) Mounting sleeve: Plastic
12) IP Rating: IP67
13) Warranty: 3 years
- IES File:
- Illminance-distance Curve:
- Light Output:
