Features
Housing
12# Die-casting grey powder coated aluminum.T=60-80µm. Adhesion of ISO class 1/ASTM class 4B
Front Cover
SUS 316L stainless steel
Gasket
Molding shaped silicone seal
Glass
Step tempered clear glass. T=7mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-9 copper with nickel-coated
Product Size
Mounting sleeve
PVC Material
Mounting Type
Underground buried mounting
IP Ratings
IP67
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| Product Model |
|---|
| UL-G-B2WDR0157 |
| UL-G-B2WDR0118 |
| UL-G-C2WDR0157 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V | 3.5 | LED 1 x 3W | 78lm | 20° | 6000K | Ra80 | ON/OFF, DALI, 1-10V | 08 |
| DC24V | 3.5 | LED 1 x 3W | 46lm | 30° | RGB | – | DMX | 08 |
| DC24V | 3.5 | LED 1 x 3W | 79lm | (45/35)° | 6000K | – | ON/OFF, DALI, 1-10V | 08 |

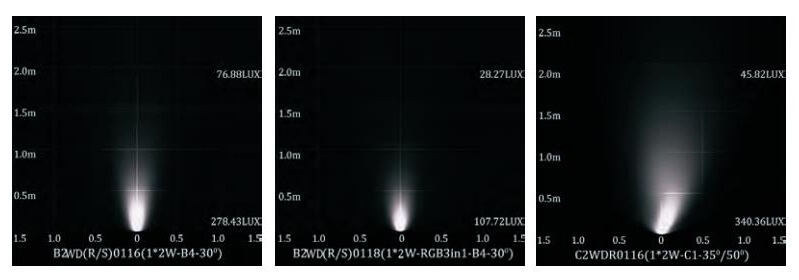

Light Distribution
