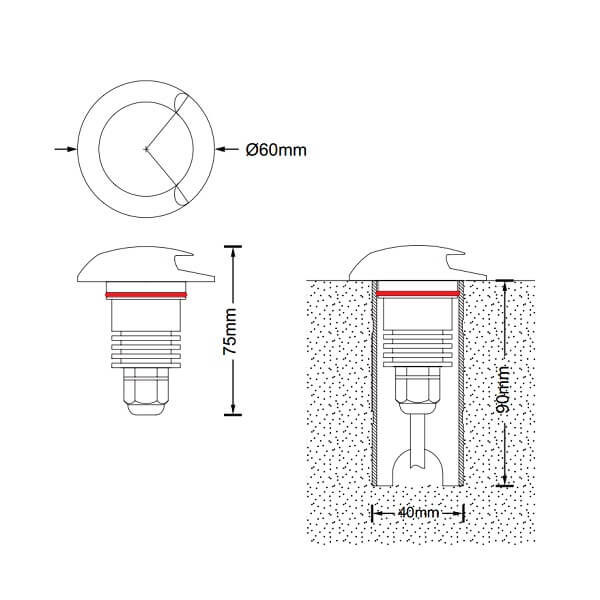

- Product Size
- Technical Specification
| UL-P-1006-1 | ||
| 1 | LED Type and Quantity | 1*3W CREE XPE |
| 2 | LED quantity in series connection*in-parallel connection | 1*1 |
| 3 | LED BIN | VF=(3.0～3.2)V |
| 4 | CCT & CRI | 2700K3000K4000K6000K,R,G,B Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.125A(DC24V) |
| 7 | Current for each pc LED | 0.7A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | DC24V |
| 2 | System Power | 3W±10% |
| 3 | Control/Dimming | ONOFF PWM |
| Optical | ||
| 1 | System Lumen Package(typical) | 17 lm |
| 2 | System Efficacy(typical)lm/w | 6LM/W |
| 3 | Beam Angle | 1*100° |
| Mechanical & packaging for front cover | ||
| 1 | Luminaire Size (L*W*H) | 65×75 (mm) Diameter x Height |
| 2 | Weight per piece | 0.37kgs |
| 3 | Packaging quantity | 40 |
| 4 | Packaging size | 43*25*28CM |
| 5 | Gross weight KG) | 16.5 |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | SS316 trim, Anodizing Aluminium 6063housing, CNC machined |
| 2 | Material for Lens or Reflector | Acrylic |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 1PC of neoprene cable, 2×1.0mm², length is1.0 meters |
| 5 | Mounting Sleeve/ Spike/ Others | Anodizing Aluminum mounting sleeve, CNC machined. |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Recessed installation |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK10 |
| 4 | Lum Classification | III |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |

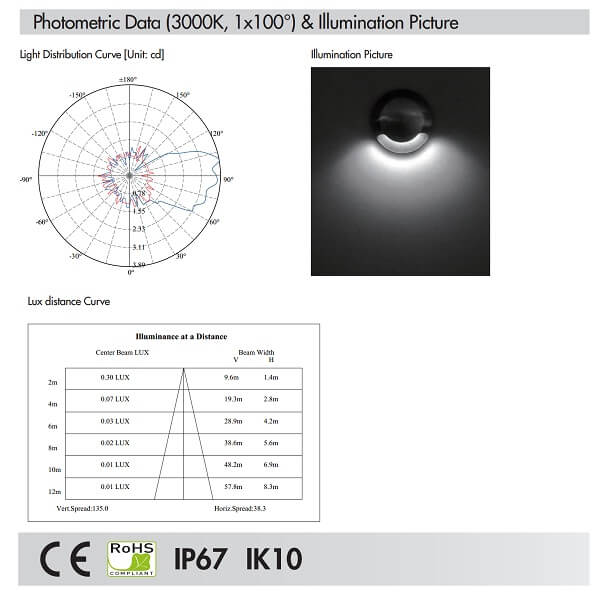

- Light Distribution Curve
- Light Distance Curve
5.Application
