- Product Size:
2.Electric Property:
| Item No. | UL-P-1006-3B |
| Light Source | 3W, 1x3W CREE XPE LED chip |
| Input Voltage | 12VDC to 24VDC |
| Color temperature | Warm White 3000K, Cool White 6000K |
| Beam angle | 3×90° |
| Lumens | 90lm to 100lm |
| CRI | >80 |
- Specifications

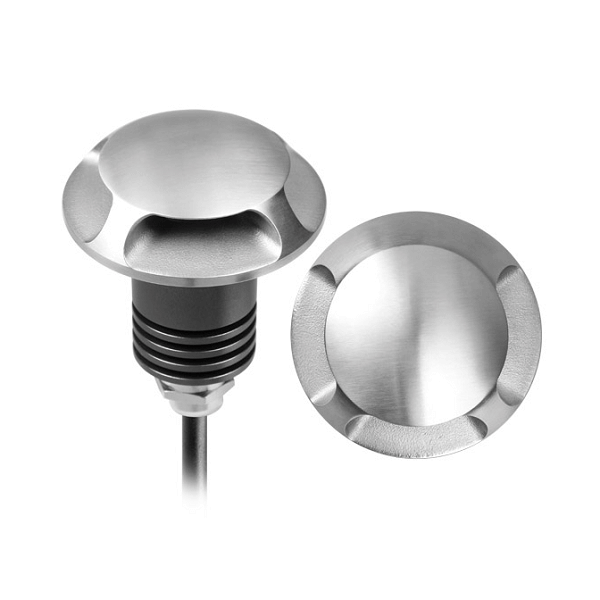

1) Underground Light, also call inground light yard light
2) Housing: Passivated 6063 aluminum
3) Front cover: Stainless steel 316L
4) Glass: Step type, tempered glass, T=4mm
5) Load capacity: 2000kgs
6) Power cable: Rubber cable of neoprene material, H05RN-F 2×0.75mm2 L=1.5m
7) Cable gland: PG9 cooper with nickel coated
8) Gasket: O-ring PMQ silicon seal
9) Driver: Constant current output
10) Operating temperature: -20 to 60 ℃
11) Mounting sleeve: Passivated 6063 aluminum
12) IP Rating: IP67
13) Warranty: 3 years
- Lighting Distribution Curve:
- Illuminance Distance Curve:
