- Product Size
- Technical Specification

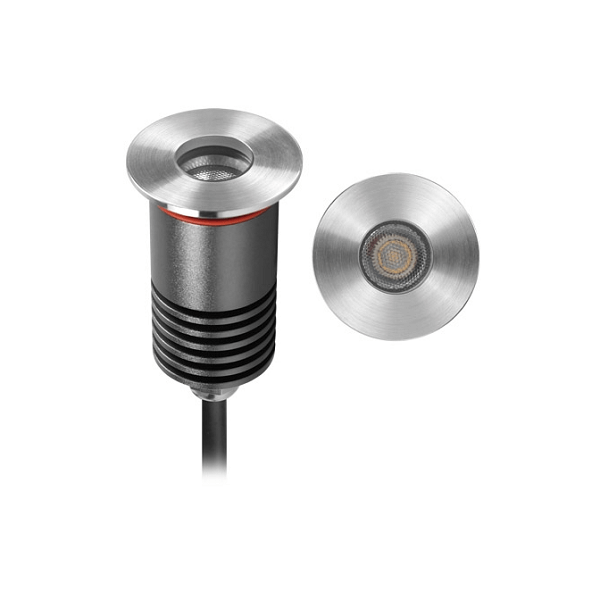

| UL-P-1003 | ||
| 1 | LED Type and Quantity | 1*3W CREE XPE |
| 2 | LED quantity in series connection*in-parallel connection | 1*1 |
| 3 | LED BIN | VF=(3.0～3.2)V |
| 4 | CCT & CRI | 2700K3000K4000K6000K,RGYB,
RGBRa≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.125A(DC24V) |
| 7 | Current for each pc LED | 0.7A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | DC24V/DC12V |
| 2 | System Power | 3W±10% |
| 3 | Control/Dimming | ONOFF PWM |
| Optical | ||
| 1 | System Lumen Package(typical) | 110 lm |
| 2 | System Efficacy(typical)lm/w | 35 LM/W |
| 3 | Beam Angle | 8°,10°,17°,23°,28°,43°,58° |
| Mechanical & packaging for front cover | ||
| 1 | Luminaire Size (L*W*H) | 40×77(mm) Diameter x Height |
| 2 | Weight per piece | 0.23kgs |
| 3 | Packaging quantity | 40 |
| 4 | Packaging size | 44*24*32CM |
| 5 | Gross weight KG) | 12.5kg |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | SS316 trim, Aluminium housing CNC machined |
| 2 | Material for Lens or Reflector | PMMA |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 1PC rubber cable of neoprene material, H05RN-F 2×1.0mm2, the length is 1 meter |
| 5 | Mounting Sleeve/ Spike/ Others | Passivated (Anodizing) Aluminum CNC machined.Dark grey |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Surface installation |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK06 |
| 4 | Lum Classification | III |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Light Distribution Curve
- Illuminance Distance Curve
