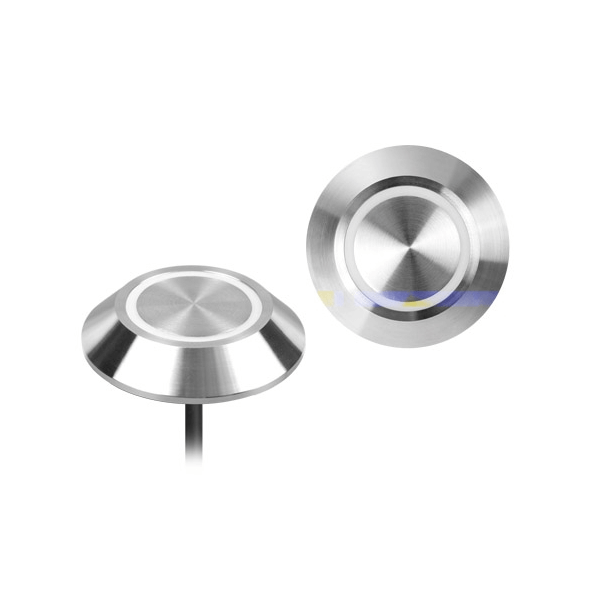

- Product Size
- Technical Specification
| UL-P-1021-0300-A-B | ||
| 1 | LED Type and Quantity | 4*0.75W Osram 3030 |
| 2 | LED quantity in series connection*in-parallel connection | 2*2 |
| 3 | LED BIN | VF=(6.0~6.2)V |
| 4 | CCT & CRI | 2700K3000K4000K6000K,R,G,B Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.125A(DC24V) |
| 7 | Current for each pc LED | 0.12A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | DC24V |
| 2 | System Power | 3W±10% |
| 3 | Control/Dimming | ONOFF PWM |
| Optical | ||
| 1 | System Lumen Package(typical) | 10 lm |
| 2 | System Efficacy(typical)lm/w | 3 LM/W |
| 3 | Beam Angle | 130° |
| Mechanical & packaging for front cover | ||
| 1 | Luminaire Size (L*W*H) | 50×15.8 (mm) Diameter x Height |
| 2 | Weight per piece | 0.08kgs |
| 3 | Packaging quantity | 100 |
| 4 | Packaging size | 37.5*37.5*12.5CM |
| 5 | Gross weight KG) | 7.8kg for NW, 9kg for GW |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | Passivated Aluminium housing CNC machined |
| 2 | Material for Lens or Reflector | PMMA |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 1PC PVC cable, 2×0.35mm², length is 0.3 meters |
| 5 | Mounting Sleeve/ Spike/ Others | Screws |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Surface installation |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK06 |
| 4 | Lum Classification | III |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Light Distribution Curve
- Illuminance Distance Curve

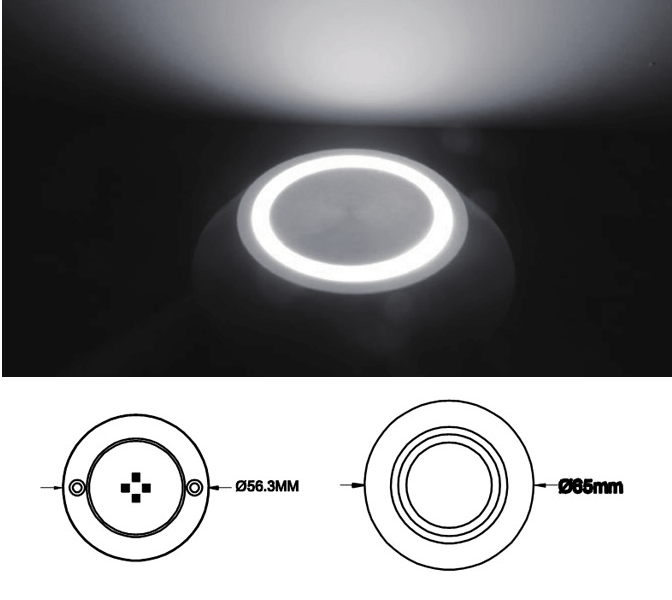

- Installation Drawing
- Selling Point:
1.Nice Light Output, 360olight output
2.Easy to install, very thin, use screw to install it.
3.Marine grade stainless steel 316 cover & solid anodizing housing for anticorrossion, can be used near to sea.
4.Good quality, 3 years warranty
