- Product Size
- Technical Specification

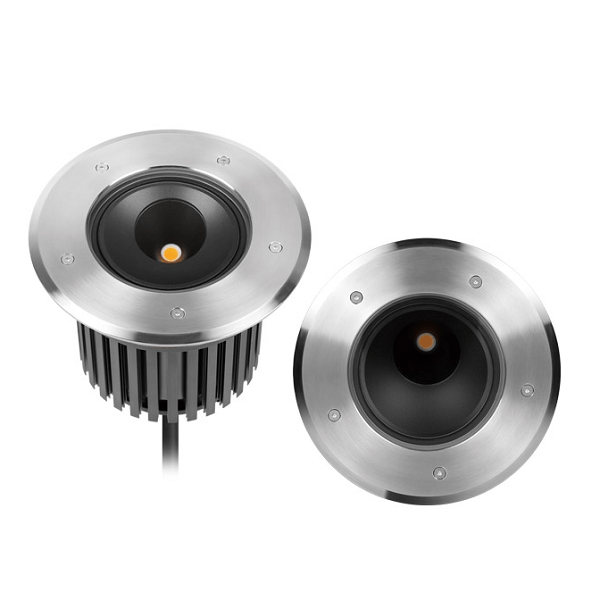

| UL-P-36W-COB-BH | ||
| 1 | LED Type and Quantity | 1*36W CREE CXA2520 |
| 2 | LED quantity in series connection*in-parallel connection | 1*1 |
| 3 | LED BIN | VF=36V |
| 4 | CCT & CRI | 2700K/3000K/4000K/6000K Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.17A |
| 7 | Current for each pc LED | 0.9A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | AC100~245V |
| 2 | System Power | 36W±10% |
| 3 | Control | ONOFF |
| 4 | Power Factor | ≧0.9 |
| 5 | Surge Protection | 1 kv: L-N/1 kv:LN-PE |
| Optical | ||
| 1 | System Lumen Package(typical) | 2880 lm |
| 2 | System Efficacy(typical)lm/w | 85 LM/W |
| 3 | Beam Angle | 15°, 24°, 38°,60° |
| Mechanical & packaging | ||
| 1 | Luminaire Size (L*W*H) | Ø170×131 (mm) Diameter x length. The height of mounting sleeve is 140mm. |
| 2 | Weight per piece | 3.5 kgs |
| 3 | Packaging quantity | 4 |
| 4 | Packaging size | 37.5*37.5*20.5cm |
| 5 | Gross weight KG) | 15KG |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | SS316 trim, passivated Aluminium housing CNC machined, dark grey color |
| 2 | Material for Lens or Reflector | PMMA |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | Glass | Stepped tempered glass, T is 10mm |
| 5 | External cable size and length | 1PC rubber cable, neoprene material,H05RN-F 3×1.0mm2. The length is 1 meter. |
| 6 | Mounting Sleeve/ Spike/ Others | passivated Aluminium 6063. CNC machined, dark grey color |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Recessed installation |
| 2 | cut-out size for on ground | Φ 148mm |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK09 |
| 4 | Lum Classification | I |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Light Distribution Curve
- Illuminance Distance Curve
- Light output
