Features
Housing
Passivated 6063 aluminum
Front Cover
SUS 316L stainless steel
Gasket
O-ring PMQ silicon seal
Glass
Step tempered clear glass. T=4mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-7 copper with nickel-coated

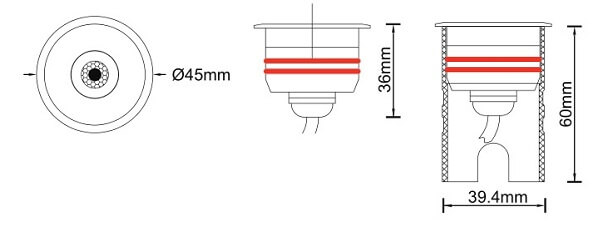

Product Size
Mounting sleeve
PVC Material
Mounting Type
Underground buried mounting
IP Ratings
IP67
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| Product Model |
|---|
| UL-P-1011 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V | 1 | LED 1 x 1W | 80lm | 11°/17°/25°/40°/60° | 3000K/6000K | Ra80 | ON/OFF, DALI, 1-10V | 08 |

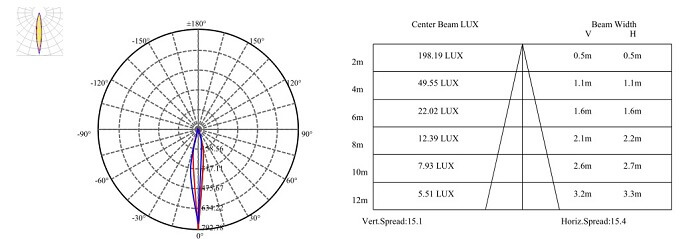

Light Distribution
