- Product Size
- Technical Specification
| UL-P-C005 | ||
| 1 | LED Type and Quantity | 81*0.25W |
| 2 | LED quantity in series connection*in-parallel connection | 9*9 |
| 3 | LED BIN | VF=(3.0~3.2)V |
| 4 | CCT & CRI | 2700K/3000K/4000K/6000K Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.1A |
| 7 | Current for each pc LED | 0.075A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | AC100-240V |
| 2 | System Power | 18W±10% |
| 3 | Control/Dimming | ONOFF |
| 4 | Power Factor | ≧0.5 |
| 5 | Surge Protection | 1 kv: L-N/1 kv:LN-PE |
| Optical | ||
| 1 | System Lumen Package(typical) | 950~1000 lm |
| 2 | System Efficacy(typical)lm/w | 55 LM/W |
| 3 | Beam Angle | 120° |
| Mechanical & packaging | ||
| 1 | Luminaire Size (L*W*H) | 500 x 63 x 78 (mm) Length x Width x Height |
| 2 | Weight per piece | 2.41 kgs |
| 3 | Packaging quantity | 10 |
| 4 | Packaging size | 60*34*211cm |
| 5 | Gross weight KG) | 25.1kg |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | SS316 trim, Anodized(Passivated) aluminium 6063 housing CNC machined, dark grey color |
| 2 | Material for Lens or Reflector | Frosted glass |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 1PC rubber cable, neoprene material,H05RN-F 2x1mm2. The length is 0.3 meter. |
| 5 | Mounting Sleeve/ Spike/ Others | Anodizied(passivated) Aluminum 6063 CNC machined. Dark grey. |
| 6 | Glass | Tempered glass, thickness is 8mm |
| 7 | Loading Capacity | 2000kgs |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Recessed installation |
| 2 | cut-out size for on ground | 580 x 56 x 78 (mm) Length x Width x Height |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK08 |
| 4 | Lum Classification | I |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Selling Point

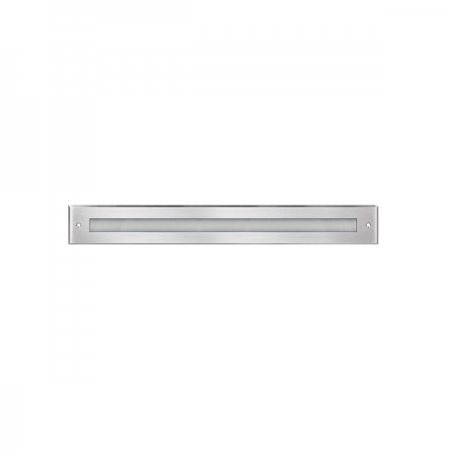

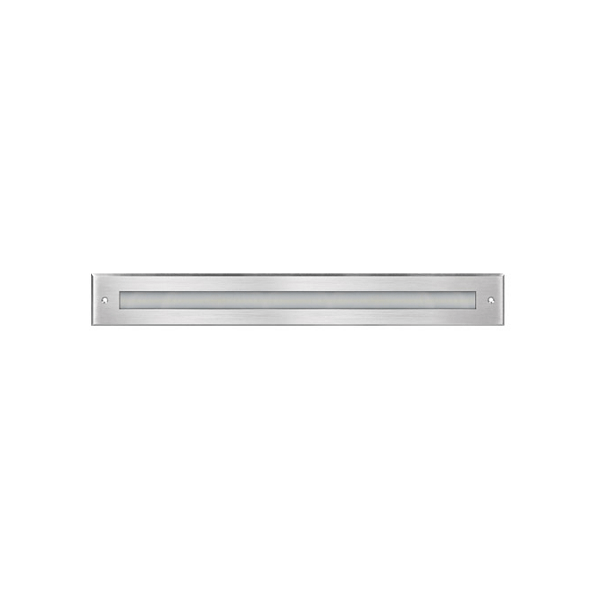

1) IP67 Linear Underground Light
2) Marine Grade stainless steel SS316 front face
3) The car can drive it over
4) 3 years warranty
5) Experienced sales and technicians to serve you.
