- Product Size:
2.Electric Property:
| Item No. | UL-P-C008 |
| Light Source | 198pcs of 2835 SMD LED chips |
| Power | 12W |
| Input Voltage | 24VDC |
| Color temperature | Warm White 3000K, Cool White 6000K |
| Beam angle | 120° |
| Lumens | 500lm to 550lm |
| CRI | >80 |
- Specifications

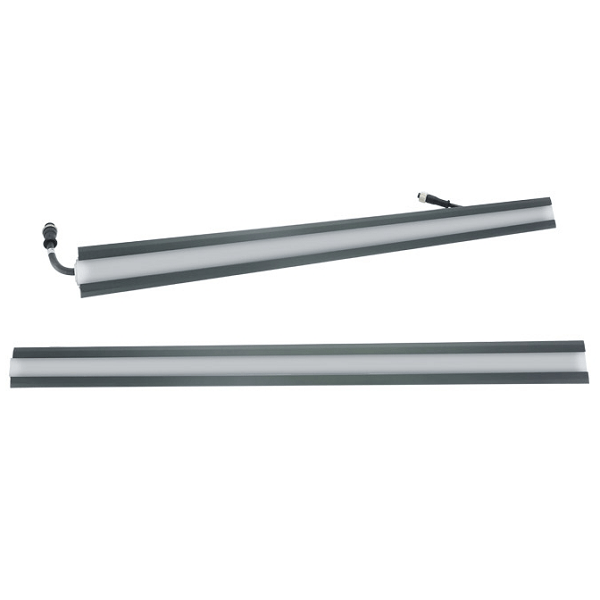

1) Linear Underground Light, also used it as step light, stair light, wall light
2) Housing: Passivated 6063 aluminum
3) Trim: Passivated 6063 aluminum
4) Cover: Without glass, but with strong PMMC diffuser
5) Load capacity: 2000kgs
6) Power cable: Neoprene material, H05RN-F 2×0.75mm2 with waterproof connector
7) Driver: Constant current output
8) Operating temperature: -20 to 60 ℃
9) Mounting sleeve: Passivated 6063 aluminum
10) IP Rating: IP67
11) Warranty: 3 years
- Lighting Distribution Curve:
- Illuminance Distance Curve:
