Features
Housing
12# Die-casting grey powder coated aluminum.T=60-80µm. Adhesion of ISO class 1/ASTM class 4B
Front Cover
SUS 316L stainless steel
Gasket
Molding shaped silicone seal
Glass
Step tempered clear glass. T=8mm
Lens
Optical lens, efficiency ≥85%
Cable gland
IP-68 PG-9 copper with nickel-coated

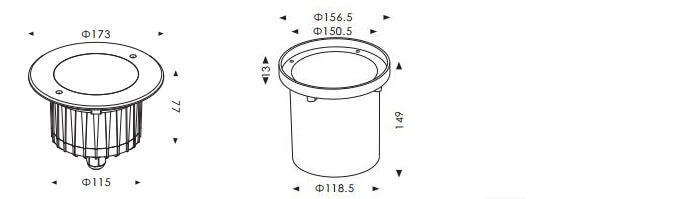

Product Size
Mounting sleeve
PVC Material
Mounting Type
Underground buried mounting
IP Ratings
IP67
Certifications
CE
Operating temperature
-20℃ ~40℃
Warranty
2 years
Characteristics
| Product Model |
|---|
| UL-G-B2BFR0657 |
| UL-G-B2BFR0618 |
| UL-G-C2BFR0657 |
| Voltage | Power | Source | Lumens | Optics | CCT | CRI | Control | IK Rate |
|---|---|---|---|---|---|---|---|---|
| DC24V | 13.5 | LED 6 x 2W | 783lm | 20° | 6000K | Ra80 | ON/OFF, DALI, 1-10V | 07 |
| DC24V | 16.8 | LED 6 x 2W | 300lm | 30° | RGB | – | DMX | 07 |
| DC24V | 12.8 | LED 6 x 2W | 613lm | (45/35)° | 6000K | – | ON/OFF, DALI, 1-10V | 07 |

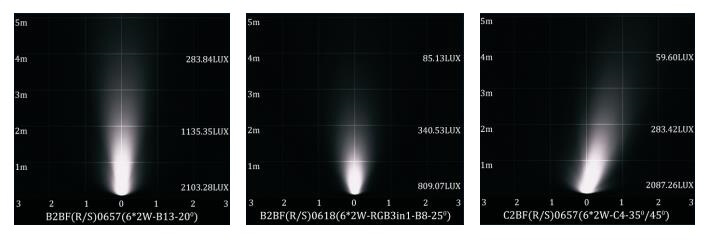

Light Distribution
