- Light Product
- Technical Specification

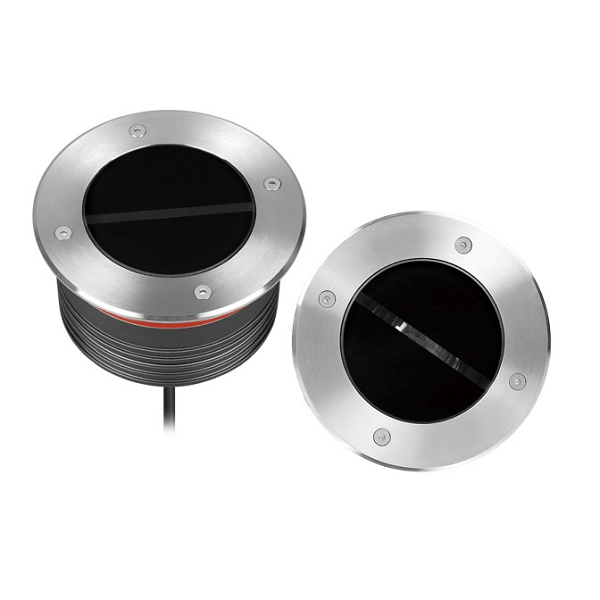

| UL-P-3001-B | ||
| 1 | LED Type and Quantity | 5*2W CREE XPE |
| 2 | LED quantity in series connection*in-parallel connection | 5*1 |
| 3 | LED BIN | VF=(3.0～3.2)V |
| 4 | CCT & CRI | 2700K3000K4000K6000K Ra≥80 |
| 5 | SDCM | < 6 steps |
| 6 | Current for all LED | 0.4A(DC24V) |
| 7 | Current for each pc LED | 0.7A |
| Electricalelectronic | ||
| 1 | Rated Input Voltage & Frequency | DC24V |
| 2 | System Power | 10W±10% |
| 3 | Control/Dimming | ONOFF PWM |
| Optical | ||
| 1 | System Lumen Package(typical) | 160lm |
| 2 | System Efficacy(typical)lm/w | 16 LM/W |
| 3 | Beam Angle | One beam with 2° 2° 2° (similar with a door)° |
| Mechanical & packaging for front cover | ||
| 1 | Luminaire Size (L*W*H) | 116×72(mm) Diameter x Height |
| 2 | Weight per piece | 1.24kgs |
| 3 | Packaging quantity | 8 |
| 4 | Packaging size | 28*28*24.5CM |
| 5 | Gross weight KG) | 11kg |
| Material & Finishing | ||
| 1 | Luminaire Body material & color | SS316 trim, Aluminium housing CNC machined |
| 2 | Material for Lens or Reflector | PMMA |
| 3 | in conformity with Rohs or not? | Yes |
| 4 | External cable size and length | 1PC rubber cable of neoprene material, H05RN-F 2×1.0mm², the length is 1 meter |
| 5 | Mounting Sleeve/ Spike/ Others | Passivated (Anodizing) Aluminum CNC machined.Dark grey |
| Mounting | ||
| 1 | Surface/Recessed/Suspended/… | Surface installation |
| Classification | ||
| 1 | Approbation | CE |
| 2 | IP | IP67 |
| 3 | IK | IK10 |
| 4 | Lum Classification | III |
| 5 | Working temp | -25℃～50℃ |
| 6 | Life time in hours | 50000h |
| 7 | Warranty years | 3 |
- Light Distribution Curve
4.Illuminance Distance Curve
5.Lighting Output
6.Selling Point
Comparing with other underground light supplier, our products have the special feature.
1) It is passivated. It is similar as anodizing, but it is a strong anodizing and eco-friendly, meet the standard of RoHS.
With passivated, the surface of housing will be smooth and elegant, not so easy to paint-off, and will have the anti-corrosive protection film.
2) The front cover is marine grade stainless steel SS316, not 304.
So that the product can be used near from the sea.
- QA
We pay much attention to the quality of the product. Will do 100% waterproof function test two times. After two times, will make a final waterproof function test according to AQL standard.
